McLaren MCL33: 2018 F1 Car Specs & Stats

Car Profile
| Team | |
| Season | 2018 |
| Constructors' | P6 62 pts |
| Races | 21 (42 starts) |
| Designers | Guillaume Cattelani Head of aerodynamicsPeter Prodromou Head of aerodynamicsTim Goss Technical directorMark Ingham Chief designer |
Drivers of the McLaren MCL33
Full Car Statistics
| Grands Prix | 21 |
| Race Starts | 42 |
| Wins | 0 (0.0%) |
| Best Grid | 7th |
| Podiums | 0 (0.0%) |
| Best Finish | 5th |
| Points Finishes | 13 |
| Points | 62 |
| Retirements | 8 (19.0%) |
| Drivers | 2 |
Power Unit & Tyres
| Power unit | Renault R.E.18 1.6 V6 turbo hybrid |
| Also powered | Red Bull RB14, Renault Sport R.S.18 |
| Tyres | Pirelli |
Key Car Landmarks
2018 Finishing Positions
Performance Breakdown
2018 Race by Race
1Podium 7Points 14Outside the points DNFNot classified
McLaren model cars
All 35 McLaren model carsTarmac Works 1:64 McLaren MCL36 #3 Daniel Ricciardo Japanese GP (2022)
Tarmac Works 1:64 McLaren MCL60 #81 Oscar Piastri Australian GP (2023)
Mini GT TSM 1:64 McLaren MCL38 #81 Oscar Piastri 2nd Place Monaco GP (2024) Limited Edition
Bburago 1:43 McLaren MCL39 #4 Lando Norris OKX Winner Australian GP (2025)
Sunday 11 November 2018.

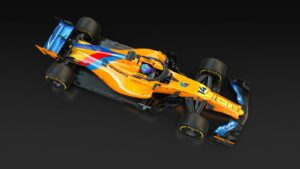

Fernando Alonso, McLaren MCL33 Renault.
McLaren's F1 car for 2018
Technical specifications McLaren MCL33 F1 car
Chassis: Carbon-fibre composite monocoque, incorporating driver controls and fuel cell
Front suspension: Carbon-fibre wishbone and pushrod suspension elements operating inboard torsion bar and damper system
Rear suspension: Carbon-fibre wishbone and pushrod suspension elements operating inboard torsion bar and damper system
Dampers: Sachs Race Engineering
Brakes: Carbon fibre pads and discs, Akebono brake calipers and master cylinders; Akebono 'brake by wire' rear brake control system
Transmission: McLaren 8-speed electro-hydraulically operated seamless shift sequential carbon-cased gearbox, longitudinally mounted
Clutch: Electro-hydraulically operated, carbon multi-plate (by AP Racing)
Differential: Epicyclic differential with multi-plate limited slip clutch
Electronics: McLaren Applied Technologies. Including chassis control, power unit control, data acquisition, alternator, sensors, data analysis and telemetry
Cooling system: Calsonic Kansei water and oil cooling
Steering: Power-assisted rack and pinion
Steering wheel: McLaren Applied Technologies dashboard
Tyres: Pirelli
Wheels: Enkei, magnesium alloy
Paint: AkzoNobel Car Refinishes system using Sikkens products
Lubricants and fluids: BP Castrol (despite Petrobas sponsorship)
Fuel: BP Castrol (despite Petrobas sponsorship)
Dimensions
Height: 950 mm (minus T camera)
Weight: 733kg (FIA mininum; incl. driver and lubricants, tank empty)
Weight distribution: between 45.4% and 46.4% (as limited by the regulations)
Powertrain
Designation: Renault R.E.18
Type: Turbocharged, 90° 1.6l V6, assisted with kinetic and heat ERS
Valves: 24 (4 per cylinder)
Rev limit: 15,000rpm
Pressure charging: Single turbocharger, unlimited boost pressure (typical maximum 3.5 bar abs due to fuel flow limit)
Bore: 80mm
Stroke: 53mm
Crank height: 90mm
Construction: Cylinder block in aluminium
Exhaust: Single exhaust outlet, from turbine on car centre line
Injection: Direct fuel injection, limited to 500bar
Weight: Undisclosed (at least 145kg)
Total horsepower: More than 950bhp (as claimed by Renault Sport)
Energy recovery system: Energy Recovery Systems incorporating two motor generator units – the MGU-H, recovering energy from the exhaust and the MGU-K recovering energy from braking
Energy Store: Battery solution (up to 4MJ per lap), between 20 and 25 kg
