Haas VF-19: 2019 F1 Car Specs & Stats

Haas VF-19
2019 Formula 1 car

Haas VF-19

9th in standings | Haas car

6th
Best Finish
6th
Best Quali
28
Points
1
Fastest Lap

Car Profile

Team Haas Season 2019 Constructors' P9 28 pts Races 21 (42 starts)
Compare with another car

Power Unit & Tyres

Power unit Ferrari 0641.6 V6 turbo hybrid Also powered Alfa Romeo C38, Ferrari SF-90 Tyres Pirelli

Drivers of the Haas VF-19

20 Kevin Magnussen KevinMagnussen P16 20 pts
8 RomainGrosjean P18 8 pts

2019 Finishing Positions

6th 1
7th 2
8th 1
9th 1
10th 2
11th 3
12th 1
13th 7
14th 3
15th 4
16th 2
17th 4
18th 1
19th 1
DNF 9
DNF Did Not Finish

2019 Race by Race

21 Grands Prix
Kevin Magnussen
6131313714171719DNF81312DNF1791515181114
Romain Grosjean
DNFDNF11DNF101014DNF16DNF7DNF131611DNF1317151315

1Podium 7Points 14Outside the points DNFNot classified

Stats current as of:

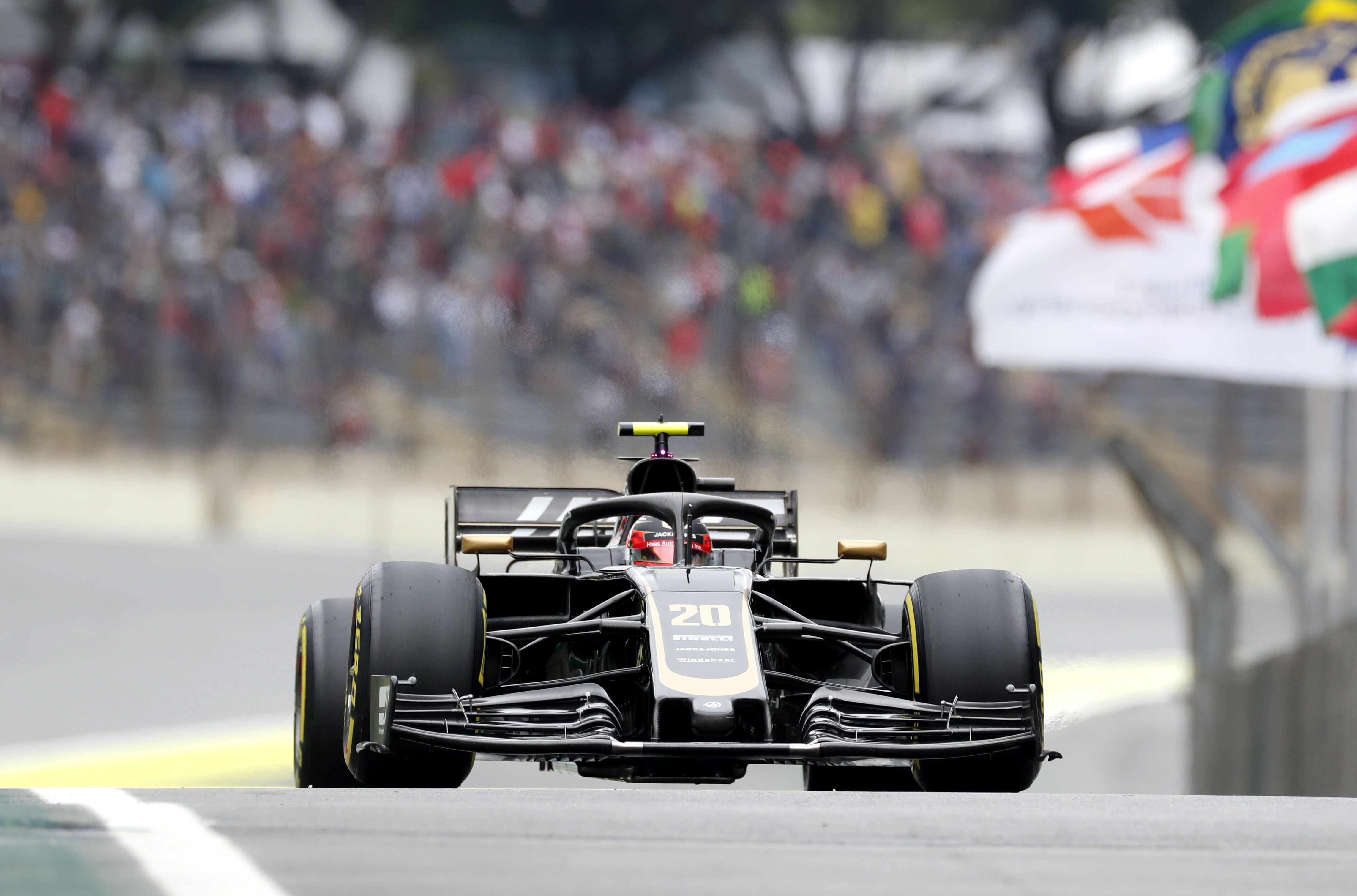

SAO PAULO, BRAZIL - NOVEMBER 15: Kevin Magnussen, Haas VF-19 during the 2019 Formula One Brazilian Grand Prix at Autódromo José Carlos Pace, on November 15, 2019 in Sao Paulo, Brazil. (Photo by Steven Tee / LAT Images)

Haas' F1 car for 2019

Technical specifications Haas VF-19 F1 car

Chassis: Carbon-fibre monocoque
Front suspension: Upper and lower wishbones, inboard springs and dampers actuated by push-rods
Rear suspension: Upper and lower wishbones, inboard springs and dampers actuated by pull-rods
Dampers: ZF Sachs Race Engineering
Brakes: Six-piston callipers and carbon fibre pads and discs
Transmission: Ferrari 8-speed quick-shift sequential carbon-cased gearbox, hydraulically activated. Longitudinally mounted
Clutch: Carbon fibre plates, by AP Racing
Differential: Servo controlled hydraulic limited-slip differential
Electronics: FIA standard ECU and FIA homologated electronic and electrical system (as provided by MES)
Steering: Ferrari
Tyres: Pirelli
Wheels: OZ, magnesium alloy

Dimensions

Height: 950 mm (minus T camera)
Track width: 1,600 mm (front); 1,550 mm (rear)
Weight: 743kg (FIA mininum; incl. driver and lubricants, tank empty)

Powertrain

Designation: Ferrari 064
Type: turbocharged, 90° 1.6l V6, assisted with kinetic and heat ERS
Valves: 24 (4 per cylinder)
Rev limit: 15,000rpm
Pressure charging: Single turbocharger, unlimited boost pressure (typical maximum 3.5 bar abs due to fuel flow limit)
Bore: 80mm
Stroke: 53mm
Crank height: 90mm
Exhaust: Single exhaust outlet, from turbine on car centre line, along with two outlet pipes connected to the wastegate
Injection: Direct fuel injection, limited to 500bar
Weight: Undisclosed (at least 145kg)
Total horsepower: More than 900hp
Energy recovery system: Integrated Hybrid energy recovery via electrical Motor Generator Units
Energy Store: Lithium-Ion battery solution (up to 4MJ per lap), between 20 and 25 kg
Cooling system: Secan/Marston
Fuel and lubricants: Shell

Last updated:

Haas VF-19: Frequently Asked Questions

Which team raced the Haas VF-19?
Haas raced the Haas VF-19 in the 2019 Formula 1 season, finishing 9th in the constructors' championship with 28 points.
Who drove the Haas VF-19?
Kevin Magnussen and Romain Grosjean drove the Haas VF-19 in 2019.
How many races did the Haas VF-19 win?
The Haas VF-19 did not win a Grand Prix in 2019; its best result was 6th.
Which engine powered the Haas VF-19?
The Haas VF-19 used the Ferrari 064, a 1.6 V6 turbo hybrid power unit.
